Hacker/Tweaker AFR Display Board
This is for you, the hard core Hacker/Tweaker
who wants to make your car stand out from the crowd with a super stealth
and clean in-dash installation. So file, grind and glue until you have
a clean, integrated, in-dash wideband AFR display.
The Zeitronix Hacker/Tweaker is
a very small
AFR display for the Zt-2 or Zt-3 Wideband Systems.

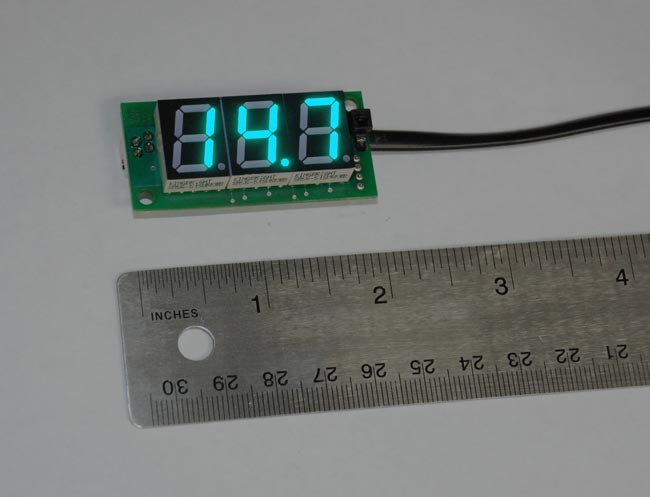

Designed to fit into tight spots, full board
dimensions are less than 2" by 1". The minimum opening to display the
digital readout is only 0.56 x 1.4 inches. It's an open frame and bare board
display meant to be mounted in the dash, in place of a stock clock or
wherever you, the Hacker/Tweaker wants to mount a discrete wideband
AFR display. Like all LED displays it requires a tinted foil or Lexan cover.
There are two mounting holes for screws or standoffs. It powers up right from
the Zt-2 or Zt-3 DATA port. Comes in blue or red digits.
See our customer gallery for some inspiring
display installations.
|
ORDER HERE |
| Hacker/Tweaker Board |
With tinted
cover (red display) |
With tinted
cover (blue
display) |
 |
 |
 |
Sizes and Specifications
-
Full board dimensions are less than 2" by 1",
only 1.975 x .930 inches (50.17 x 23.62 mm)
-
Digit readout area is 0.560 x 1.400
inches (14.22 x 35.56 mm)
-
Two mounting holes for #4 (or 3mm) screws.
-
Cable length is
5 feet, enough to reach your under dash Zt-2 or Zt-3 and can be extended if necessary
DOWNLOAD
TEMPLATE
|
