nDash and DashDAQ Dual Channel Setups

Two or more (up to 8) Zt-2s/Zt-3s can be connected to the DashDAQ II XL display.

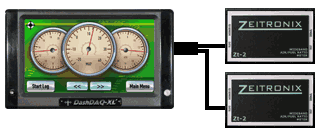

2 Zt-2s connected to a nDash II XL Display

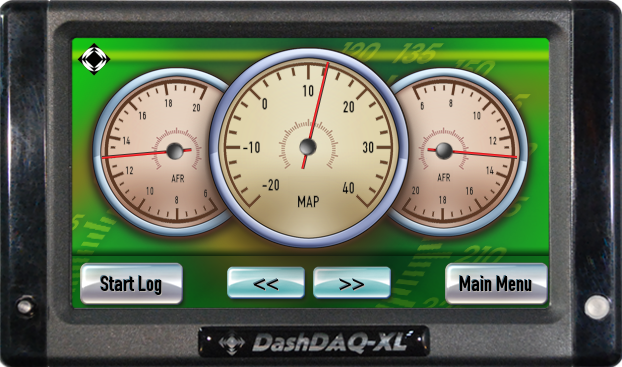

Connecting 2 Zeitronix Zt-2 Wideband Systems to the nDash display provides a dual channel setup with enormous capabilities. Supported features include dual-AFRs, dual-EGTs, dual-Boost/Oil/Fuel Pressures, dual-Air/Fluid temperatures, OBDII data, data logging to SD memory card and two additional analog inputs for pressure or temperature sensors. The nDash has multiple themes and multiple display screens for each theme.
Compare the Zt-2 and Zt-3 Widebands
DashDAQ Dual Channel Zt-2s
1 Zt-2 and 1 Zt-3 connected to a nDash Display
The Zt-2 Wideband System plus a Zt-3 Wideband connected to a nDash display is a solid combination providing both dual AFR/Lambda readings and support for many additional sensor readings.

Compare the Zt-2 and Zt-3 Widebands

DashDAQ Dual Channel Zt-2 and Zt-3

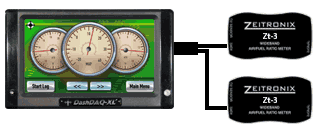

2 Zt-3s connected to a nDash Display
Using 2 Zt-3s provides a minimal solution to connecting left and right bank dual-AFR support to a nDash display. The nDash display has 2 analog inputs for adding pressure or temperature sensor readings.

Compare the Zt-2 and Zt-3 Widebands

DashDAQ Dual Channel Zt-3s
nDash Accessory Cable
Two Zeitronix Wideband Systems connect to the DashDAQ Accessory Cable which is included with purchase of the DashDAQ display. A cable with a single connector is included by default. Ask for a "dual-setup" accessory cable if you will be connecting two systems to the DashDAQ.
OBDII is available in all 1996 and later vehicles but is not required when using the nDash with Zeitronix wideband systems. Zeitronix Wideband data monitoring and logging may be used on non-OBDII and non-EFI (electronic fuel injection) vehicles with the nDash display.
Up to 8 Wideband AFR/Lambda Readings
Two Zeitronix devices can connect directly to the two serial data connections available on the nDash. Additional wideband signals can be brought in by connecting the linear wideband output signal from the Zt-2 or Zt-3 to the two analog inputs on the available on the nDash display and Zt-2 Wideband.
